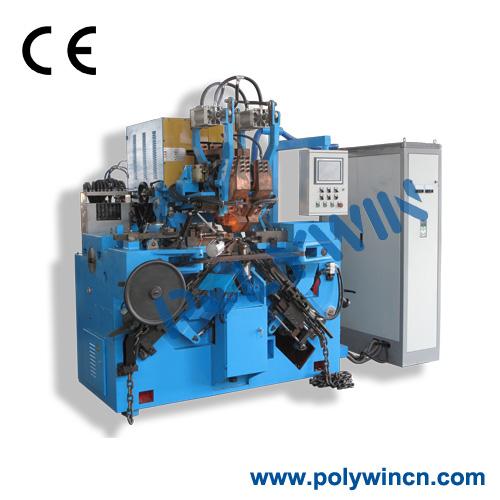

Chain Welding Machine CE04W-250

Chain Welding Machine » CE04W-250
Click to enlarge

Pictures available of Chain Welding Machine:

CE04W-250

Chain Welding Machine

Automatic Chain Welding Machines are equipments used for butt-resistance welding of round steel chains and their deburring. These sophisticated machines are controlled by an encoder and PLC, and are digitally operated which make them a user-friendly. They use modern and very stable AC inverter frequency conversion electrical parts & transformer, thus making them well suited for manufacturing high-level G80, G100 lifting chains, mining chains, anchor chains, etc. These machines are also used in making low-grade chains such as snow chains, decorative chains, lashing chains, and others.

Enquiry Now

Chain Welding Machine Details

Technical Data

No.
Item/Article No.
CE04W-250
1
Wire diameter
11-16mm
2
Pitch of link chain
35-65mm
3
Output, chain links
20-32pcs/min
4
Rated load succession rate
50%
5
Transformer Power
250KVA
6
Motor Power
11KW
7
Rated speed
600-1200
8
Rotary encoder
960 rpm
9
Secondary no load voltage
4-10v
10
Pressure of cooling water
0.15-0.3MPa
11
Cooling water
30 liters/min.
12
Cooling water temperature
15-25C
13
Air Supply Pressure
0.65Mpa min.
14
Pneumatic working pressure
0.45-0.65MPa
15
Air consumption
14 liters/working cycle
16
Machine Body Size
2.35X1.67X2.27m
17
Weight
6MT



* We also supply improved electric system by using better & stable AC inverter frequency conversion electrical parts & transformer.


*For more information about detailed technical data, installation, training, guarantee and post-sales service, please contact us.



 https://youtu.be/as3gxjgaADM
