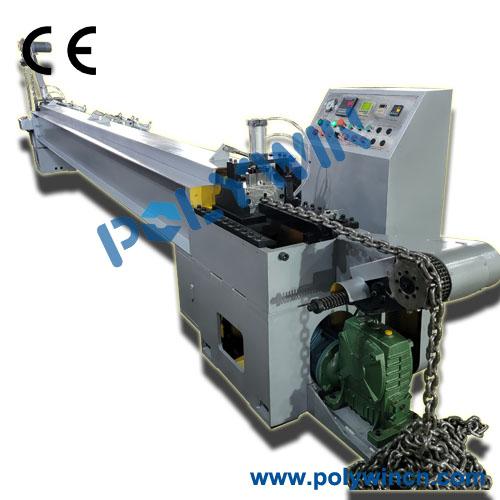

Chain Proof Testing Machine CETT-10/CETT-16/CETT-22

Chain Proof Testing Machine » CETT-10/CETT-16/CETT-22
Click to enlarge

Pictures available of Chain Proof Testing Machine:

CETT-10/CETT-16/CETT-22

Chain Proof Testing Machine

Designed for testing chain tension(manufacturing proof force testing or proof load testing).

The chain proof load test applies a specific, heavy load to lifting equipment (chains) using proof testing machines. This controlled process verifies the chains safe load apacity and tensile strength by ensuring it holds the weight without failure (e.g., excessive elongation). Passing this industry-standard test confirms the equipment is 100% safe for use, preventing accidents when handling heavy loads.

Enquiry Now

Chain Proof Testing Machine Details



Technical parameters :


  Functions
model
Size range
Auto testing
Testing time
（0-60S adjustable）
Data acquisition and printing
Auto stop when broken
Auto alert when chain blocked
CETT-10
￠4-10mm
√
√
optional
√
√
CETT-16
￠10-16mm
√
√
optional
√
√
CETT-20
￠16-20mm
√
√
optional
√
√

model
parameters

CETT-10

CETT-16

CETT-20
Size range (mm)
￠4-10mm
￠10-16mm
￠16-20mm
Max single stroke length (M)
6.0
6.0
6.0
Control methods
PLC+RS485+Frequency conversion servo program control
Max tension value (mm)
220
300
500
System max thrust (KN)
120
300
500
System working force(KN)
100
200
300
Motor power(KW)
5.5
6.5
8.0
Fastest speed of single stroke
35S/6 M
45S/6 M
50S/6 M
Air pressure (Mpa)
≥0.4
≥0.4
≥0.4
Min setting number of links
>2
>2
>2
PLC Failure alarm setting value
>10%
>10%
>10%
Sampling voltage
DC24V/4-20mA
DC24V/4-20mA
DC24V/4-20mA
Dimension (LxWxH : M)
8.8×0.8×1.9
8.8×0.8×1.9
8.8×1.3×1.9
Weight (T)
1.3
2.3
6.0





https://youtu.be/tX_EaXGoziw
