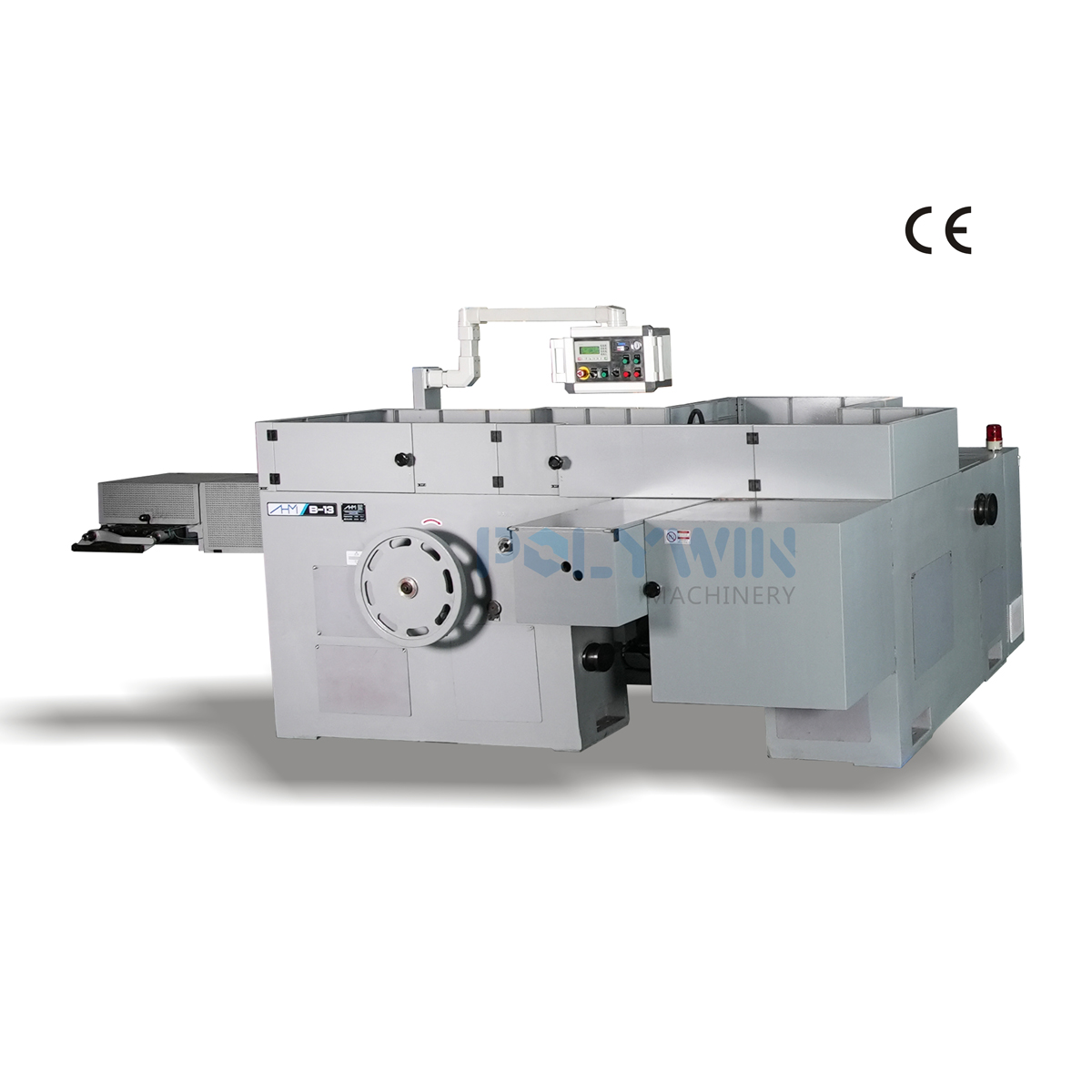

G115 Chain Bending Machine 6-13mm
  • G115 Chain Bending Machine 6-13mm
G115 Chain Bending Machine 6-13mm

G115 Chain Bending Machine 6-13mm

Main Function:

This machine is built with a robust cast body, delivering excellent overall rigidity and superior stability for reliable, high-performance operation. Over 70% of its components are precision-machined on CNC centers, ensuring tighter tolerances that translate into higher chain accuracy, more consistent quality, and increased production speed.

Equipped with high-end encoders for precise cylinder and safeguard control, it features an active control system. With an increased number of sensors, it provides comprehensive protection for moving parts.

The fully enclosed safety guard, integrated with door safety switches, offers complete protection, ensuring a safer working environment for operators.




Products details

Article No.

       CE03B-13

Wire diameter

500N/mm² :6 ~ 13mm;  750N/mm² :6 ~ 12mm

Inside link length (pitch)

19 ~ 82 mm

Outside link width

20.5 ~ 50 mm

Wire infeed length

65 ~ 240 mm

Output, chain links

500N/mm² :55~80 pcs/minute

750N/mm²: 55~75 pcs/minute

Motor Power

7.5KW

Weight

7000kg

Size (L x W x H)

2.89x2.3x1.85(m)
